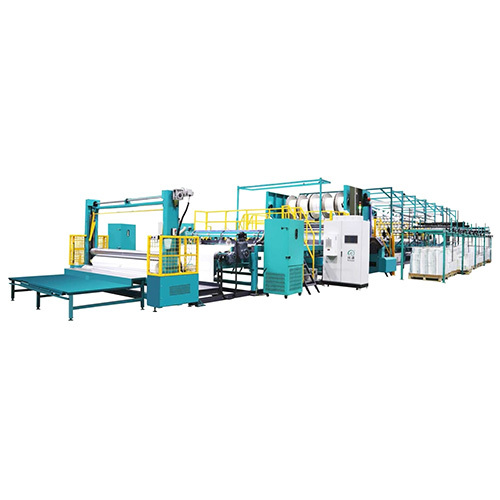

Multi-Axial Weft Insertion Machine

Get a Price/Quote

MOQ : 1 Unit

Multi-Axial Weft Insertion Machine Specification

Application
Geotextile, Automobile, Construction, Marine, Wind Energy, Composites

Stitch Density
Adjustable, Electronically Controlled

Dimension (L*W*H)
Customizable (typically 23m x 5m x 4.5m)

Knitted Type
Multi-axial warp/weft knitting

System Support
Available For Multiple Configuration

Condition
New

Needle
Latch Needle / Guide Needle

Product Type
Technical Textile Machinery

Speed
600-800 RPM (Standard)

Gauge
E18 / E22 / Custom Options

Power
380V, 3 Phase, 50Hz (Standard)

Control System
PLC + HMI Panel

Color
Industrial Blue/Yellow As Shown

Racking
Servo Motor Driven Racking

Weight
Approx. 18,500 kg

Knitting Method
Multi-Axial Weft Insertion Knitting

Lead Time
30-60 Working Days

Function
Automated Multi-Axial Fabric Production

Drive Type
Servo Motor Driven

Main Frame Material
High-strength Structural Steel

Fabric Width Range
Up to 6000mm (Customizable)

Yarn Types Supported
PP, PET, Glass Fiber, Carbon Fiber, Basalt, Aramid

Output Capacity
Up to 1200 sqm/hour

Safety Features
Full Machine Guarding, Emergency Stop System, Safety Sensors

Operation Mode
Continuous, Semi-automatic, Fully-automatic

Feeder System
Multi-roller High Precision Yarn Feeding

Lubrication
Automatic Central Lubrication

Maintenance
Low Maintenance, Easy Access Panels

Noise Level
75 dB

User Interface
Intuitive Touchscreen Interface, Multi-Language Support

Cutting Unit
Integrated Online Slitting And Cutting System

Weft Insertion
0/90/45 Multi-directional Insertion

Data Logging
Production Data Tracking, Real-time Monitoring

About Multi-Axial Weft Insertion Machine

Take advantage of the praiseworthy Multi-Axial Weft Insertion Machine with Feeder System-an astounding solution for various industries! Engineered with a glorious multi-roller, high-precision yarn feeding system, and output capacity of up to 1200 sqm/hour, this machine is built from high-strength structural steel and supports up to 6000mm customizable fabric width. Enjoy advanced safety features, multi-directional weft insertion, automatic lubrication, and a low-noise operation. Customizable and easy to maintain, it's ideal for geotextiles, automotive, marine, and more. Shop now for a limited time offer!

Versatile Application: Reliable Performance & Wide Compatibility

The Multi-Axial Weft Insertion Machine is used for high-performance multi-axial warp/weft knitting-suitable for geotextile, automobile, wind energy, marine, construction, and composite industries. It accommodates an impressive range of yarn types including PP, PET, glass fiber, carbon fiber, basalt, and aramid. Its material feature of high-strength structural steel ensures durability and stability, while electronically controlled stitch density provides flexible customization for diverse production needs.

Packaging, Global Export & Sample Policy Overview

Each machine is securely packaged using industrial-grade materials to ensure safe delivery. Our primary export markets include Asia, Europe, the Middle East, and North America. Clients can request samples subject to proposal amount and outlay agreements. We also offer exchange and service support for eligible machinery. For customized evaluations, contact us to discuss your requirements and sample policy in detail.

FAQ's of Multi-Axial Weft Insertion Machine:

Q: How does the Multi-Axial Weft Insertion Machine enhance fabric production efficiency?

A: With its servo motor-driven system and high precision multi-roller yarn feeding, this machine delivers up to 1200 sqm/hour output, fully integrated slitting/cutting, and automated lubrication, significantly streamlining production processes.

Q: What yarn types can be processed using this machine?

A: The machine is compatible with a wide range of yarns including polypropylene (PP), polyethylene terephthalate (PET), glass fiber, carbon fiber, basalt, and aramid, making it ideal for diverse industrial applications.

Q: When is it possible to receive a sample or conduct a product trial?

A: Samples or trial runs are available following a discussion of your proposal amount and outlay agreements. Please contact our export team to coordinate a sample policy aligned to your needs.

Q: Where is the Multi-Axial Weft Insertion Machine typically used?

A: It is widely utilized in geotextile, automotive, construction, marine, wind energy, and composite sectors due to its flexible configuration and material compatibility.

Q: What are the key safety and operational features of this machine?

A: The machine is equipped with full machine guarding, emergency stop systems, safety sensors, and an intuitive touchscreen interface with multi-language support, ensuring both safe and user-friendly operation.

Q: How is maintenance simplified on this machine?

A: Designed for low maintenance, it features automatic central lubrication and easy access panels, reducing downtime and ensuring continuous, efficient production.
