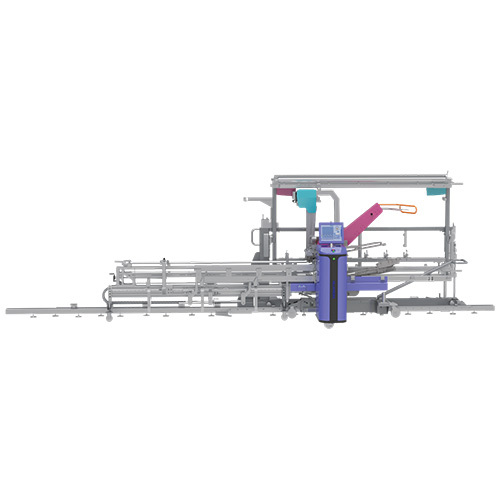

ML7800 - ML7800T Drawing-In Machine

Get a Price/Quote

MOQ : 1 Unit

ML7800 - ML7800T Drawing-In Machine Specification

Input Material
Copper, Aluminium, Mild Steel Wires

After Sales Service
Yes, provided by manufacturer

Safety System
Emergency Stop & Protected Cover

Working Speed
10-15 m/s

Installation Service
Available on Request

Display Interface
Digital Touchscreen Panel

Roller Material
Hardened Alloy Steel

Spool Size Compatibility
Standard/Custom

Min Outlet Diameter
1.5 mm

Main Shaft Speed
Adjustable

Drawing Capstan Diameter
450 mm

Number of Drawing Dies
7-9

Electrical Protection
Overload & Short-circuit protection

Ambient Humidity
85%

Max Inlet Diameter
6.5 mm

ML7800 - ML7800T Drawing-In Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About ML7800 - ML7800T Drawing-In Machine

Let Us Build Our Future Together

Features

Supports smooth switching between J, C, and O type heald thread formats, ensuring flexible configuration and easy adjustment for different weaving requirements.
Maximum weaving beam width up to 4 meters, with typical configurations of 2.3 m, 2.8 m, and 4 m, meeting various production needs.
Dropper separation adopts patented side-separation technology, which prevents bending or falling off. It offers high tolerance for thickness variations and is suitable for both old and new droppers.
Suitable for cotton and blended yarns (coarse combed and combed).
Suitable for wool yarns (combed wool yarn and coarse spun wool yarn).

Compatible with:

Silk
Monofilament
Multifilament
Specialty yarns (such as ribbons, knotted yarns, and loop yarns)

Yarn count range:

3–250 tex
Ne 130–2.4
11–2500 dtex
10–2250 den
Nm 330–4

Model	Heald type	Speed ends/ min	Max Heald frame	Dropper module	Max Beam width	Max dropper
HDS 7800 Pro	0 or C/J	180	20	With	400 cm	6
HDS 7800 T	0 or C/J	200	12	With	400 cm	6

The system consists of one mobile host machine and multiple warp frames (recommended configuration: 2 sets).

Used for:

Single beam with single-layer yarn Single beam with multi-layer yarn Multiple beams
Beams from the pre weaving stage such as sectional warping/sizing

High-Efficiency Wire Drawing

The ML 7800 7900PRO sets new standards in metal wire drawing, accommodating copper, aluminium, and mild steel wires. Its adjustable main shaft speed and variable frequency drive ensure optimal flexibility to match various production requirements. With a production capacity of up to 1200 kg per shift and compatibility with both standard and custom spool sizes, this machine is perfect for intensive, continuous operations.

Advanced Control and Safety

Featuring a modern digital touchscreen interface and PLC control system, the ML 7800 7900PRO provides precise command over operations and real-time monitoring. Safety is paramount, with integrated emergency stop functions, a protected cover, and comprehensive overload and short-circuit electrical protections, delivering a safe and reliable working environment.

Durability and Support

Constructed with a heavy-duty frame and finished with polished surfaces, this machine promises long-term durability with minimal maintenance. The manufacturer offers complete after-sales and installation services upon request, ensuring continuous support and system longevity for exporters, manufacturers, and suppliers across India.
