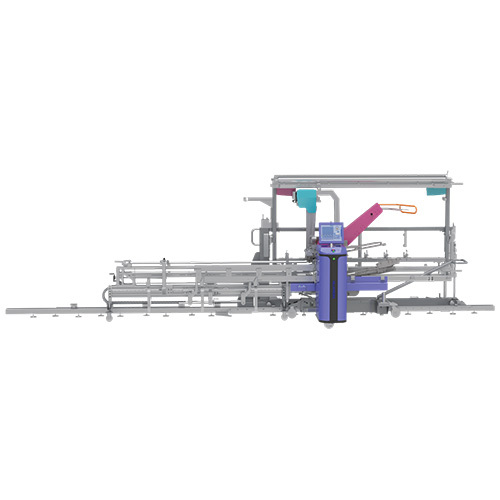

HDS7800 Pro - 7800T Drawing-In Machine

Get a Price/Quote

MOQ : 1 Unit

HDS7800 Pro - 7800T Drawing-In Machine Specification

Roller Material
Hardened Alloy Steel

Max Inlet Diameter
6.5 mm

Drawing Capstan Diameter
450 mm

Safety System
Emergency Stop & Protected Cover

Ambient Humidity
85%

Electrical Protection
Overload & Short-circuit protection

Input Material
Copper, Aluminium, Mild Steel Wires

Min Outlet Diameter
1.5 mm

Number of Drawing Dies
7-9

Display Interface
Digital Touchscreen Panel

Main Shaft Speed
Adjustable

After Sales Service
Yes, provided by manufacturer

Working Speed
10-15 m/s

Spool Size Compatibility
Standard/Custom

Installation Service
Available on Request

HDS7800 Pro - 7800T Drawing-In Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About HDS7800 Pro - 7800T Drawing-In Machine

Features

Supports smooth switching between J, C, and O type heald thread formats, ensuring flexible configuration and easy adjustment for different weaving requirements.
Maximum weaving beam width up to 4 meters, with typical configurations of 2.3 m, 2.8 m, and 4 m, meeting various production needs.
Dropper separation adopts patented side-separation technology, which prevents bending or falling off. It offers high tolerance for thickness variations and is suitable for both old and new droppers.
Suitable for cotton and blended yarns (coarse combed and combed).
Suitable for wool yarns (combed wool yarn and coarse spun wool yarn).

Compatible with:

Silk
Monofilament
Multifilament
Specialty yarns (such as ribbons, knotted yarns, and loop yarns)

Yarn count range:

3–250 tex
Ne 130–2.4
11–2500 dtex
10–2250 den
Nm 330–4

Model	Heald type	Speed ends/ min	Max Heald frame	Dropper module	Max Beam width	Max dropper
HDS 7800 Pro	0 or C/J	180	20	With	400 cm	6
HDS 7800 T	0 or C/J	200	12	With	400 cm	6

The system consists of one mobile host machine and multiple warp frames (recommended configuration: 2 sets).

Used for:

Single beam with single-layer yarn Single beam with multi-layer yarn Multiple beams
Beams from the pre weaving stage such as sectional warping/sizing

High-Efficiency Wire Drawing

The ML 7800 7900PRO sets new standards in metal wire drawing, accommodating copper, aluminium, and mild steel wires. Its adjustable main shaft speed and variable frequency drive ensure optimal flexibility to match various production requirements. With a production capacity of up to 1200 kg per shift and compatibility with both standard and custom spool sizes, this machine is perfect for intensive, continuous operations.

Advanced Control and Safety

Featuring a modern digital touchscreen interface and PLC control system, the ML 7800 7900PRO provides precise command over operations and real-time monitoring. Safety is paramount, with integrated emergency stop functions, a protected cover, and comprehensive overload and short-circuit electrical protections, delivering a safe and reliable working environment.

Durability and Support

Constructed with a heavy-duty frame and finished with polished surfaces, this machine promises long-term durability with minimal maintenance. The manufacturer offers complete after-sales and installation services upon request, ensuring continuous support and system longevity for exporters, manufacturers, and suppliers across India.

FAQ's of HDS7800 Pro - 7800T Drawing-In Machine:

Q: How does the HDS7800 Pro - 7800T Drawing-In Machine operate for different metal wires?

A: The ML 7800 7900PRO efficiently processes copper, aluminium, and mild steel wires by drawing them through 7-9 hardened alloy steel dies. Adjustable main shaft speed and advanced PLC control allow tailoring operation for various materials and diameters, ensuring high precision and quality results every time.

Q: What safety systems are included in this wire drawing machine?

A: This machine incorporates a comprehensive safety system, featuring an emergency stop button, a protective cover, and electrical protections against overload and short circuits. These features ensure both operator safety and reliable, uninterrupted operation.

Q: When should installation and after-sales service be requested?

A: Installation service is available upon request at purchase or during planning for machinery setup. After-sales service is provided by the manufacturer and can be accessed anytime to address maintenance, troubleshooting, or spare part requirements, ensuring continuous, efficient operation.

Q: Where can the HDS7800 Pro - 7800T Drawing-In Machine be installed and used?

A: The machine is designed for flexible installation in industrial environments with ambient humidity up to 85% and temperatures from 0C to 50C. Its robust frame and adaptable power options make it suitable for wire drawing facilities, manufacturing plants, and metal processing units.

Q: What is the process flow of wire drawing on this machine?

A: Wire drawing begins with feeding metal wire (up to 6.5 mm in diameter) into the machine. The wire passes through multiple dies, progressively reducing its diameter (down to 1.5 mm), while water cooling and automatic lubrication ensure smooth surface finish and prevent overheating throughout the process.

Q: How is the machine maintained for reliable performance?

A: Thanks to its automatic lubrication, water cooling, and polished surface treatment, maintenance is straightforward and infrequent. Regular checks of the digital interface, safety components, and consumables will help maintain high efficiency and prolong the system's lifespan.

Q: What are the key benefits of using the ML 7800 7900PRO?

A: This machine offers high efficiency, low noise, robust construction, and adaptable operating parameters. Its digital interface, advanced safety, and precision drawing technology improve productivity while reducing downtime and maintenance costs, making it ideal for demanding industrial applications.
